What is Flange Globe Valve

The Flange Golbe Valve is a valve that controls the flow of fluid by rotating the ball. Its connection method is flange connection. There is a through channel in the center of the ball. When the channel is aligned with the pipeline axis, the fluid can pass through; when the ball rotates 90 degrees, the channel is perpendicular to the pipeline axis and the fluid is blocked.

Advantages

Quick Opening and Closing

Simply rotate the ball 90° to open or close. The full-bore design reduces flow resistance to ≤2%, ensuring rapid fluid flow and reducing energy consumption.

High Torque Bearing Capacity

The double-support ball structure evenly distributes stress, and the valve stem's anti-blowout design withstands pressure ≥450 MPa, ensuring safe operation under high-pressure environments.

High Material Adaptability

Valve body options include carbon steel or low-temperature alloy steel with impact toughness ≥27 J @ -29°C; ball option is 316L or hard alloy; valve seat option is PTFE, reinforced PTFE, or metal hard seal, adaptable to high-temperature, low-temperature, and corrosive media.

Precision Machining Ensures Sealing

Key components are CNC machined with an accuracy of ±0.02 mm. The ball surface has Ra≤0.4 μm and is chrome-plated with a hardness ≥800 HV. Welding and heat treatment enhance pressure resistance, ensuring long-term stable sealing performance.

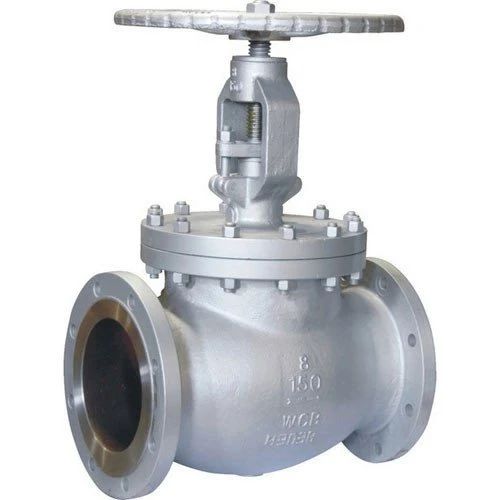

ANSI Globe Valve

Material Structure: ASTM A216 WCB for high temp. service ASTM A352 for low-temperature service and ASTM A351 CF8, CF8M for cast stainless steel valves
Working Pressure: Class150LB, Class300LB; Class600LB; Class900LB; Class1500LB; Class2500LB;
Nominal Diameter: NPS1/2~24";DN15~DN600mm
WorkingTemperatur: -29to650ºC
Shipping & Delivery: 30-45 days lead time; deliver by ship from Ningbo port or Shanghai port

Flange Golbe Valve

Globe Stop Valve

Material Structure: ASTM A216 WCB for high temp. service ASTM A352 for low-temperature service and ASTM A351 CF8, CF8M for cast stainless steel valves
Working Pressure: Class150LB, Class300LB;
Nominal Diameter: NPS1/2~10";DN15~DN250mm
WorkingTemperatur: -29to210ºC
Shipping & Delivery: 30-45 days lead time; deliver by ship from Ningbo port or Shanghai port

Cast Steel Bellow Seal Globe Valve

Material Structure: ASTM A216 WCB for high temp. service ASTM A352 for low-temperature service and ASTM A351 CF8, CF8M for cast stainless steel valves
Working Pressure: Class150LB, Class300LB;
Nominal Diameter: NPS1/2~10";DN15~DN250mm
WorkingTemperatur: -29to210ºC
Shipping & Delivery: 30-45 days lead time; deliver by ship from Ningbo port or Shanghai port

Y-Type Globe Valve

Material Structure: ASTM A216 WCB for high temp. service ASTM A352 for low-temperature service and ASTM A351 CF8, CF8M for cast stainless steel valves
Working Pressure: Class150LB, Class300LB;
Nominal Diameter: NPS1/2~10";DN15~DN250mm
WorkingTemperatur: -29to210ºC
Shipping & Delivery: 30-45 days lead time; deliver by ship from Ningbo port or Shanghai port

Angle Type Globe Valve

Material Structure: ASTM A216 WCB for high temp. service ASTM A352 for low-temperature service and ASTM A351 CF8, CF8M for cast stainless steel valves
Working Pressure: Class150LB, Class300LB;
Nominal Diameter: NPS1/2~10";DN15~DN250mm
WorkingTemperatur: -29to210ºC
Shipping & Delivery: 30-45 days lead time; deliver by ship from Ningbo port or Shanghai port

Frequently Asked Questions

Q: What is flange globe valve?

A: Flange globe valve is a stop valve connected by flange. Stop valve is a commonly used shutoff valve, which controls the flow of fluid by rotating the valve stem to drive the valve disc up and down. Flange is a structural part, usually used to connect two pipes, valves or other equipment, with high structural strength, simple and reliable installation.

Q: What is the basic structure of flange globe valve?

A: The flange globe valve is mainly composed of valve body, valve cover, valve disc (opening and closing parts), valve stem, sealing packing and flange. The valve disc is driven by the valve stem and moves up and down along the axis of the valve seat to open and close the valve.

Q: How does the flange globe valve work?

A: When the valve stem rises, the valve disc leaves the valve seat, the valve opens, and the medium passes through; when the valve stem descends, the valve disc presses the valve seat, the valve closes, and the medium is prevented from passing through.

Why choose us?

Our goal is to provide our customers with the best possible Globe Valve products and services at all times.
We promise to create a good working environment and a broad space for development for our employees and promote their common progress with the company.
Our team is committed to providing exceptional customer service and support for all of our Globe Valve customers.
We will establish collaboration and cooperation with more excellent companies so as to bring the best technology and Flange Golbe Valve to the market.
Our Globe Valve products are designed to be highly customizable, with a range of different options and accessories available.
Customers are the basis of the company's survival and development, and to win customers is to win the market.
As a leading supplier and manufacturer of Globe Valves, we provide customers with the best possible products and services.
We are honest with our customers, strengthen dialogue and communication, respect each other, enhance strategic mutual trust, keep pace with the times, expand practical cooperation, and strengthen cooperation to meet challenges.
Our mission is to provide the best possible Globe Valve products and services to our customers.
We hold a rigorous scientific attitude, based on effective market research and brand style as the guide, objectively and accurately establish the different market positioning of each brand.
